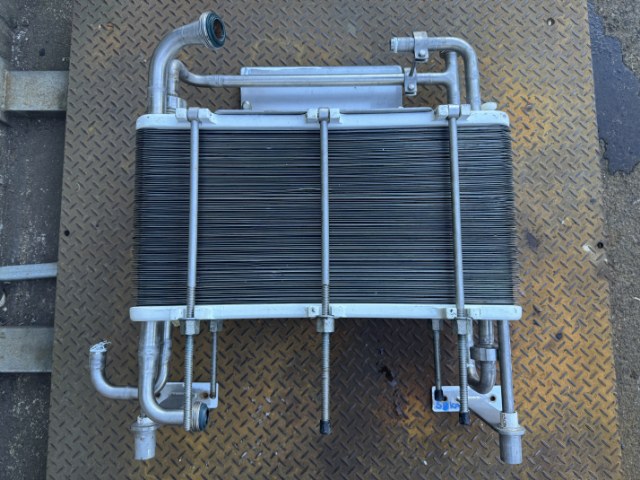

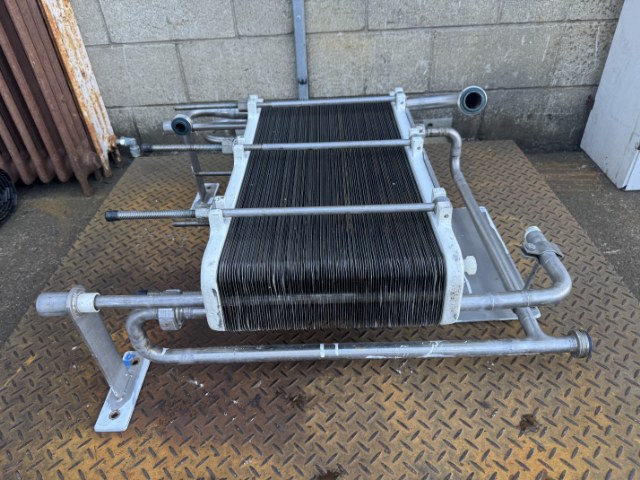

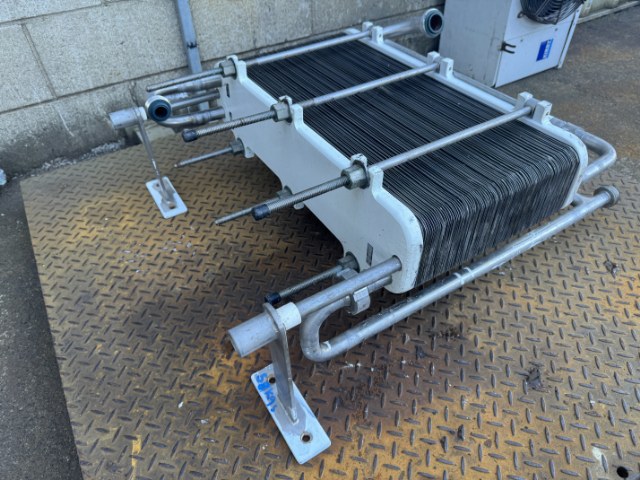

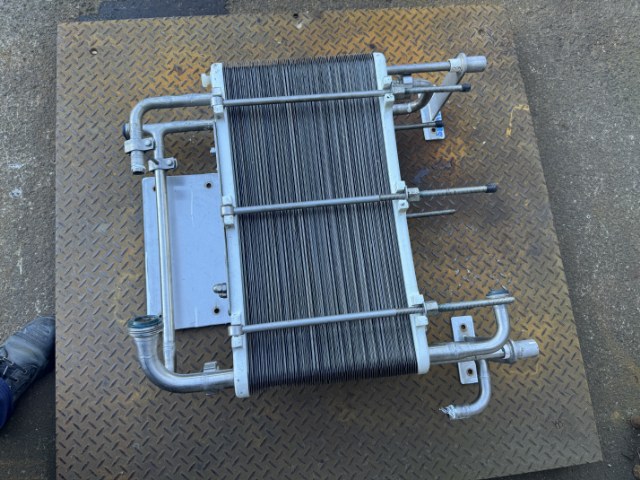

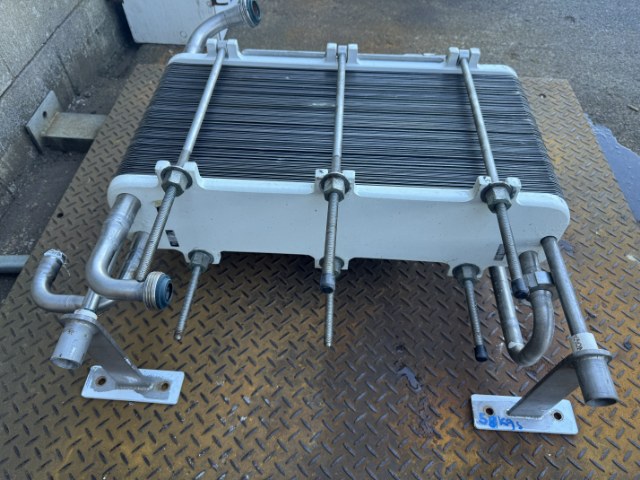

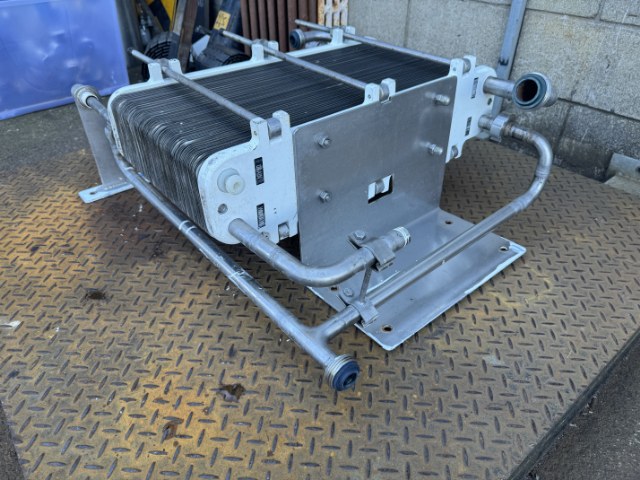

Stainless Steel Plate Heat Exchanger
We have one of these available.
In good used condition, has just been removed from service. Previously used in a brewery.
Has been wall mounted and comes with the brackets.
Plate dimensions are approximately 630mm x 130mm, approx. 310mm distance between the end plates.
Stainless Steel plates with alloy end plates.
Water inlet is 25mm s/s tube with ¾ BSP fittings.
Water outlet is 25mm s/s tube with RJT fitting.
Product in is 32mm s/s tube with RJT
Product out is 32mm s/s tube reduced to 25mm s/s tube with RJT fitting.
In good used condition, has just been removed from service. Previously used in a brewery.
Has been wall mounted and comes with the brackets.
Plate dimensions are approximately 630mm x 130mm, approx. 310mm distance between the end plates.
Stainless Steel plates with alloy end plates.
Water inlet is 25mm s/s tube with ¾ BSP fittings.
Water outlet is 25mm s/s tube with RJT fitting.
Product in is 32mm s/s tube with RJT
Product out is 32mm s/s tube reduced to 25mm s/s tube with RJT fitting.
800.00 + GST
780 mm L x 800 mm W x 350 mm H (mm)
58kgs
