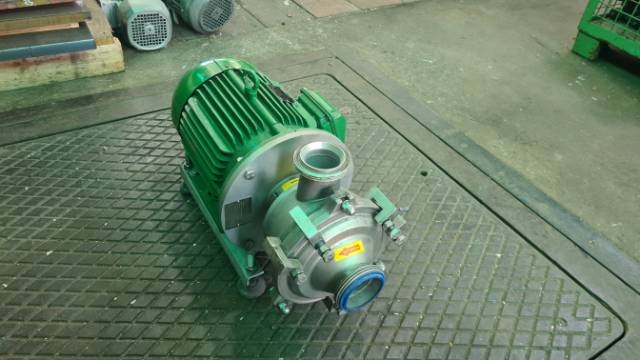

WEG / Alfa Laval MR200 Liquid Ring Pump
We have one of these available.

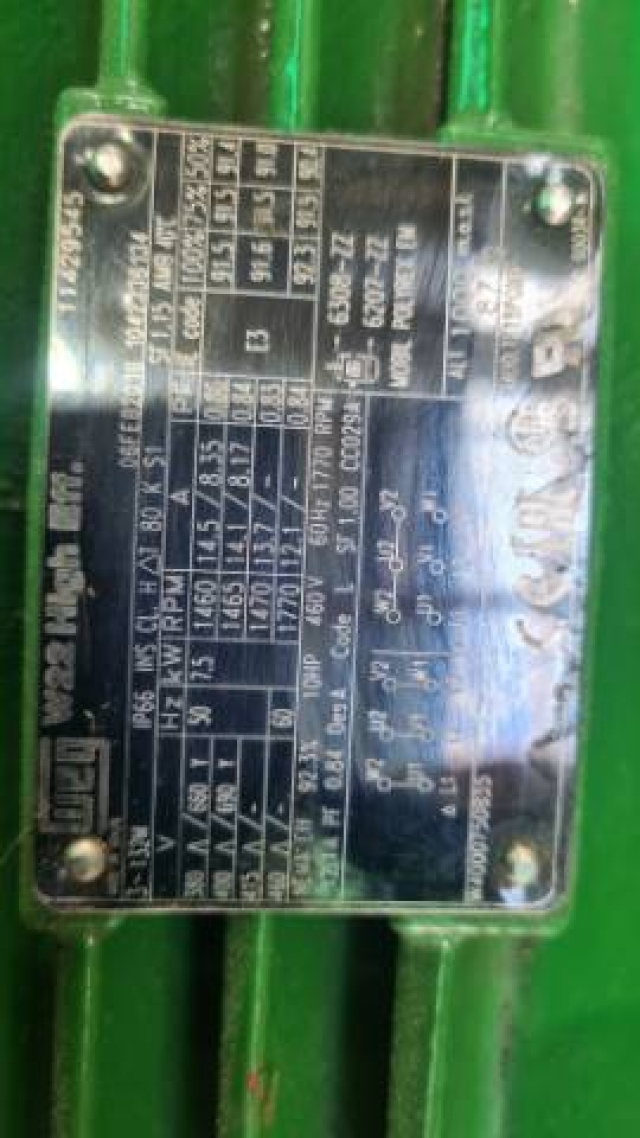

Make: WEG
Rating: 7.5Kw
Speed: 1460 RPM (4 Pole)
Stainless Pump

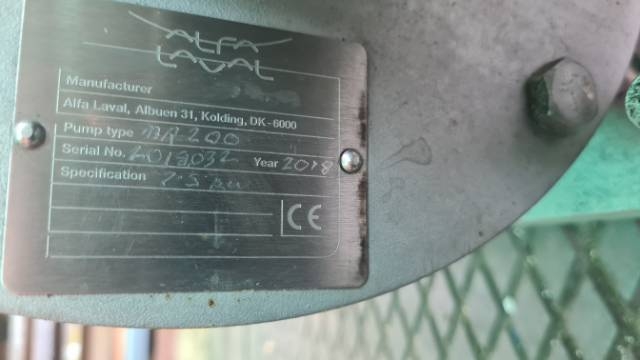

Alfa Laval MR200
Year: 2018

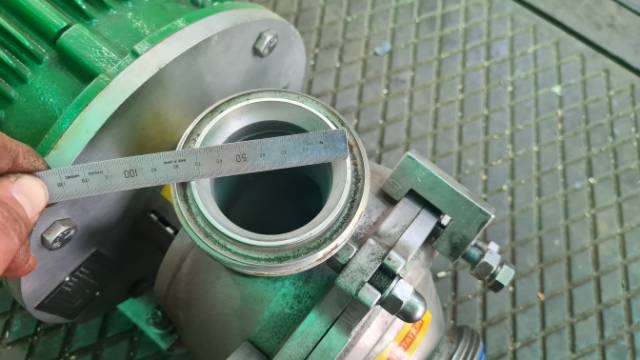

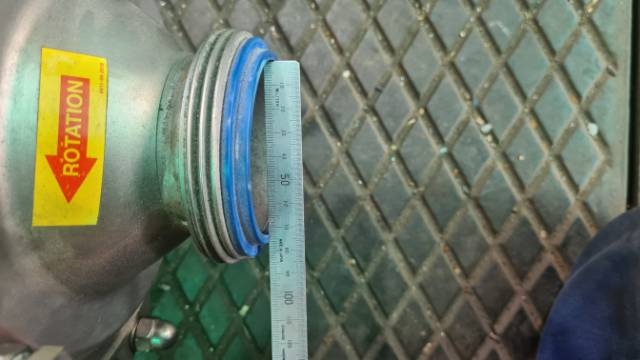

Approx 2.5” Inlet and Outlet?
Fitted with RJT style fittings so a little hard to measure.
The Alfa Laval MR pump is specifically designed for pumping liquids that contain air or gas and is most commonly used for CIP return applications.
The Alfa Laval MR Pump uses the principles of centrifugal force to operate. However, instead of directing fluid into a ring or volute-type casing around the periphery, the MR Liquid Ring Pumps transfer the fluid into channels on either side of the impeller, in the front plate and back plate of the pump. These side channels increase in volume as the impeller passes the suction port, creating a vacuum and drawing in the liquid. This volume is then automatically reduced at the discharge port, creating pressure and forcing the liquid out, thereby providing the pumping action.
Make: WEG
Rating: 7.5Kw
Speed: 1460 RPM (4 Pole)
Stainless Pump
Alfa Laval MR200
Year: 2018
Approx 2.5” Inlet and Outlet?
Fitted with RJT style fittings so a little hard to measure.
The Alfa Laval MR pump is specifically designed for pumping liquids that contain air or gas and is most commonly used for CIP return applications.
The Alfa Laval MR Pump uses the principles of centrifugal force to operate. However, instead of directing fluid into a ring or volute-type casing around the periphery, the MR Liquid Ring Pumps transfer the fluid into channels on either side of the impeller, in the front plate and back plate of the pump. These side channels increase in volume as the impeller passes the suction port, creating a vacuum and drawing in the liquid. This volume is then automatically reduced at the discharge port, creating pressure and forcing the liquid out, thereby providing the pumping action.
1200.00 + GST
L x W x H (mm)
kg
